Games for Kids. Flash vs HTML5

For my session at FITC Amsterdam 2012 I’ll be talking about making games for kids.

More and more, mobile devices are allowing people to visit our websites away from the desktop. The sites that I work on chiefly consist of games (Flash) and video content (delivered via Flash). This means that mobile devices without Flash will only be able to gain access to a very small amount of content. To improve this situation we are looking at broadening our game content to include HTML5 builds.

HTML5 has a great deal of promise, and in the future we will be able to achieve amazing things within the browser. But what about now? What can be achieved on the current crop of those mobiles and tablets that are available to children?

To explore the development of HTML5 games, I set myself the task of building whole game prototypes with NO libraries. Here, I felt the best way for me to discover and analyse the issues was to code raw.

With a target of mobile and tablet devices I figured that I’d need to hand-roll my own highly performant physics systems, and I wanted this to be fairly sophisticated. I will describe my methods with code and visual examples.

Throughout the session I’ll detail my discoveries. What are the most optimal ways to achieve cross (mobile) browser game builds? How do you achieve high performance on low spec devices? How do you optimise assets? What tools are good to use?

I’ll look at what we can and can’t do with HTML5 – some of the exciting possibilities and some of the game related (currently)missing features.

Also, what next for the mobile technology and gaming? HTML%, Apps or the cloud?

I’ll be posting the session content – game prototypes and performance tests – here on the GameLab before my FITC Amsterdam session.

Advertisement
05
Mar
11

Introduction to Mercator Projections, Latitude and Longitude

Or how to place a map coordinate into 3D space. This post is a brief walk through of the basics from my 2010 presentation “Where in the world? Intercontinental Ballistic Flash”.

Belgian, Flemish geographer and cartographer Gerardus Mercator, in 1569 presented a cylindrical map projection. The Mercator Projection quickly became the standard map used for nautical purposes. It’s advantages were that the scale is linear in any direction around a point, meaning all angles were preserved (conformal).

Geographer and cartographer Gerardus Mercator

Gerardus Mercator

Around the equator feature shapes are accurately portrayed but as the poles are approached there is a size and shape distortion. The scale increases as the pole is neared, eventually becoming infinite when the pole is reached.

If you imagine the world as a beach ball. The Mercator Projection is the equivalent of cutting open the ball at each pole and stretching the skin to form a cylinder. Now slice down the cylinder and you have the map.

The first Mercator projected map. 1569.

All map projections distort the shape or size of the Earth’s (or for that matter any other planet’s) surface. The Mercator Projection exaggerates areas far from the equator. Greenland seems as large as Africa, but is in fact 1/14 of the size, Antartica appears to be the largest continent but is in fact only 5th in terms of area.

Despite the obvious distortions, the Mercator Projection makes a great interactive map. Thanks to the conformality it can be zoomed nearly seamlessly.

So here we have a system that converts a 3D scene, the real world, onto a 2D plane, the map. This system can just as easily convert the 2D back to 3D. It is a coordinate system that requires two positional parameters and one constant: the planet radius.

The positional parameters are latitude and longitude. As developers we are used to standard coordinates x and y. Across then up. Horizontal then vertical. With latitude and longitude we have to think differently. Latitude is vertical and longitude is across. Up then across. Latitudes run from pole to pole, while longitudes run around the planet.

There are 180 degrees of latitude from the South Pole to the North pole, and 360 degrees around the planet. Imagine yourself sat at the centre of the Earth with a laser pointer. Point at the Equator then you are at 0 degrees latitude, at the South Pole -90 degrees and at the North Pole 90 degrees. Now point at the Equator again you can turn 180 degrees around the equator to the right (-180 degrees longitude) and to the left (180 degrees longitude).

With these any point on the surface of the planet can be recorded or indeed any position on a map.

So we have a system for calculating a position on the surface of a sphere, a 3D coordinate, but how do we convert latitude, longitude and the planet’s radius into a 3D x,y,z coordinate?

public static function convertLatLonTo3DPos(lat:Number, lon:Number, radius:Number):Vector3D
{
var v3d:Vector3D = new Vector3D();

//Convert Lat Lon Degrees to Radians
var latRadians:Number = lat * TO_RADIANS;
var lonRadians:Number = lon * TO_RADIANS;

v3d.x = radius * Math.cos(lonRadians) * Math.sin(latRadians);
v3d.z = radius * Math.sin(lonRadians) * Math.sin(latRadians);
v3d.y = -radius * Math.cos(latRadians);

return v3d
}

Here the latitude and longitude are converted into radians ( TO_RADIANS:Number = Math.PI / 180 ). Then the trigonomic functions are applied to the planet radius to return a vector3D x,y and z.

02
Mar
10

AS3 Magnifying Glass Class :: Pixelbender Lense Refraction

The AS3 Magnifying Glass is a lense refraction class employing PixelBender. The class is an encapsulated method that takes a source image, a position and radius and returns a refracted result in sprite form.

I needed to represent a spy glass in my current project, and was looking for a very efficient method to achieve this. PixelBender seemed the obvious route and I’m pretty impressed by the speeds I am getting. I have max-ed out the frame rate and am still getting full (120) fps.

The MagnifyingGlass effect is the resultant class. The class embeds a pixelbender filter that spherizes it’s input and returns this as a sprite.

When using the class, the source image should be sent to the MagnifyingGlass full size, and be displayed to the user at a reduced size. This helps to preserve the integrity of the refracted image.

Usage:


//refraction: 0=Lots, 1 =None
//radius: The radius of the magnifying glass
//position_point: The position of the magnifying glass on the source image
//source_pic: BitmapData of the source picture
magnifying_glass = new MagnifyingGlass(refraction,radius, posn_point, source_pic)

magnifying_glass.magnifyingGlassPosition=posn_point
magnifying_glass.update()

AS3 Magnifying Glass Class

The AS3 MagnifyingGlass Class

I have set up a quick demo that shows the class at work on 3 different images. Press any key to change the image.

Image#1: Have a look around a bit of England & Wales. Enjoy.
Image#2: Hundreds of cartoon characters. See if you can find Quagmire! – Gigity.
Image#3: There is a sheep in there somewhere.

NOTE: The PixelBender filter used here is based on Joa Ebert’s Spherize Filter originally built in Hydra – the forerunner of PixelBender.

NOTE: This requires Flash Player 10 and above.

Demo: Magnifying Glass Class Demo
Source: MagnifyingGlass.zip

25
Feb
10

AS3 Flamer Class :: Setting things on fire

The Flamer Class is a quick and easy method to set things on fire. Throw some fuel (any display object) at the class and make it burn.

While working on another project I needed to make some lightweight flames. I looked around, tried a bit of perlin noise, some convolution filters – then some PixelBender filtering – I wasn’t really happy with the results.

I found the excellent Saqoosha’s Fire on Wonderfl.
This demo had nearly the flicker and colour mapping that I was looking for. Rendering the perlin noise on each frame was causing a bit too much processor overhead for my purposes.
Instead of rendering two perlin octaves and moving the layers against each other, I took two separate single octave perlin noise bitmaps and rotated one against the other while blending.
This gives a nice effect and is very lightweight. With the Saqoosha method I was clocking at a steady 26fps, with my lightweight method I could get 90fps.

To get the flame hues I set up a gradient box, threw some colours at it, loaded those colours into an array which I then pushed to a palette map.

So how to use the Flamer class:


import swingpants.effect.Flamer

var flamer:Flamer=new Flamer(display_object)
addChild(flamer)

addEventListener(Event.ENTER_FRAME, enterFrameHandler)
function enterFrameHandler(event:Event):void
{
flamer.update()
}

Your object will now be on fire. Feel naughty?

You can set the render width and height and also set the direction of the flames by setting a point vector.


var flamer:Flamer=new Flamer(display_object,render_width, render_height, flame_direction_point)
addChild(flamer)

//The colour of the flames can be set with one of the presets (There are 4 at the moment – ORANGE_FLAME, BLUE_FLAME, YELLOW_FLAME, GREEN_FLAME – but I will be adding more)
flamer.setFlameColour(Flamer.BLUE_FLAME)

//Direction can be set on the fly:
flamer.setFlameDirection(direction_point)

Here is a demo of a pure code use of the Flamer: The Flaming Vortex. You can click on the flash to initiate an explosion, and pressing space will change the colour. Have a play:

Flaming Sun

Flamer Class. The flaming vortex demo

This next demo is an example of throwing a movieclip/sprite at the Flamer class. Don’t laugh, I quite literally spent 10 minutes putting the anims together then threw them at the Flamer. Click on Flash to change colour and object.

Flaming Car

Flamer Class Demo. Help, my car is on fire

Lots of fun can be had by throwing different animations at the Flamer. Control some with your mouse/keys. Become a twisted fire starter.

The Flamer class could do with a few more features, but is a pretty good start. The speed is pretty good, I’m happy to receive any improvement recommendations.

I have packed the Flamer class and demos up in a zip if you want to have a play:
DOWNLOAD: Flamer Class and Demos

DEMO #1: Flaming Vortex
DEMO #2: Burning Movieclips

15
Jan
10

Away3DLite: Translating 3D Coordinates to 2D Screen Position

I have been playing with the awesome Away3DLite. Playing with 1000s of polygons is very liberating, but still doesn’t mean we can slack off with the optimisation. It is important to take any opportunity to lessen the number of calculations performed per frame by the player.

To this end, I was just putting together a 2D layer above my 3D scene when I found that the camera.screen function (available in the standard Away3D library) that projects 3D coordinates(x,y,z) to 2D screen positions (x,y) wasn’t present.

In Away3DLite we have to calculate this ourselves. The salient information can be gained through a model or container’s viewMatrix3D property. To get an accurate screen position the the x,y,and z positions are drawn from viewMatrix3D. Each of x and y are divided by the z value and any screen offsets are applied.

Here is the method as a function:

public function calc2DCoords(screen_element:*):Point
{

var posn:Vector3D = screen_element.viewMatrix3D.position
var screenX:Number = posn.x / posn.z;
var screenY:Number = posn.y / posn.z;

return new Point(screenX+screenW_offset,screenY+screeH_offset)
}

Pass through a screen element (a model, primitive or object container) and the 2D result will be returned. The screenW_offset and screenH_offset are required if the ‘view’ has been centred on the stage.

I have put together a demo here to demonstrate the function. I load a couple of models into the scene and let a 2D info panel follow each around the screen.

Got to keep a close eye on those tubbies

Demo: Translating 3D Coordinates to 2D Screen Position
Source: ZIP

18
Dec
09

Creating Mathematical Formulae from sample data using Excel

So you’re in Flash and want to move an item on the stage, rotate a camera or dynamically change a volume depending on another value. You could use the curves available in various Maths libraries, but you can spend a lot of time matching and applying constants.

A quicker – more accurate way can be to come up with your own formulae.

What!!? It is easy – you really don’t have to understand the mathematics, you can get Excel and Flash to do the heavy lifting for you.

Let me explain this by means of an example:
I was building a 3D application. I had a camera and needed it’s X rotation to be close to certain values depending on the camera’s position on the Z axis. I manually moved the camera into position and noted down samples of the values I required and placed them into Excel: One column for the z value and one for the required angle. – I only need a handful of samples to allow me to plot a regression trend line.

I now select the values on the spreadsheet and create an XY scatter chart. Great, my points are on the graph. I can see it makes a curve. In the ‘Chart’ drop down menu I now ‘Add Trendline…’. If I choose ‘Linear’ I get a straight line, but I want a curve so I can choose from a number of different methods. In this case ‘Exponential’ seems good. Select that and a look at the Options tab allows me to select ‘Display Equation on Chart’.

Now as soon as I press OK, I get my equation. Simple.

Regression Curve Formula in Excel from sample data

How do I represent this formula in Actionscript? Basically it is saying 202.62 times the exponential of 0.0014 times the chart’s x value. So in AS:

The final formula in Actionscript

As required, I have calculated the formula using the camera.z value and applied it to camera.rotationX. Now whenever the z value changes I have a smooth curve applied to rotationX.

Nice!

2nd Oct 2010:
A quick addition to this post. If a more complex curve is needed then a polynomial should be chosen. A polynomial can have multiple ‘orders’. This more orders you have the more compelx the curve can be. (Excel allows up to 6). A great thing about polynomials is speed. It is merely a series of multiplications which are very light on the processor.

So a polynomial trend gives you (for example) the formula:
109.13×4 – 265.48×3 + 125.34×2 + 40.012x + 2

To represent this in Actionscript I’d need to replace x4 (x to the power of 4) with the x value paramter – say delta – so x4 becomes delta * delta * delta * delta (or indeed Math.pow(delta,4)), and so on. The final formula would be:
109.13 * Math.pow(delta,4) – 265.48 * Math.pow(delta,3) + 125.34 * Math.pow(delta,2) + 40.012 * delta + 2

18
Nov
09

Ranged Numbers. Non-Linear response curves for Sliders and TouchPads.

I’ve been building a few apps recently and have found that a linear response over a range of numbers has been a poor solution. I needed to be able to apply different response curves to user interface components (knobs, sliders, touchpads) as well as on screen display objects, characters, etc.

I needed a good name for the class, but instead came up with the pretty poor moniker ‘RangedNumbers’. I’ll change it when I come up with a better one.

So the idea is, a ‘ranged number’ is instantiated, initialised for the required range then a simple call with a value in that range will result with a percentage that can be applied to the intended recipient accordingly. I realised that an inverted curve would be handy too, so have added that functionality.

I have included exponential and powered curves as well as linear.

So to use the ranged number system:

//Instantiate and Initialise
var ranged_num:RangedNumber=new RangedNumber(min,max)
//Where min is the minumum number in the range and max is the maximum

//In use:
trace ( ranged_num.calculatedRangeNumber(value, curve_type, inverted) )
//Where:
// value is the value within the range to be calculated
// curve_type is the type of response curve.
// Curve types: RangedNumber.LINEAR, RangedNumber.EXPONENTIAL, RangedNumber.POWERED
// inverted is a boolean flag. True if the inverted response is required

I have put together two demos to show the RangedNumber class in action:

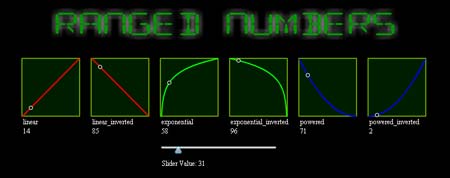

Firstly using a Slider component. Grab the slider and watch how the markers are represented on all the displayed response curves.

A demonstration of how to implement non-linear response curves

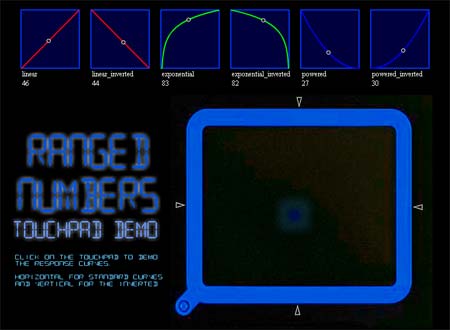

Now here is the same demo but this time using a TouchPad. Click on the touchpad to engage. In this demo horizontal movement controls the standard curves and vertical the inverted.

How to implement non-linear response curves with a touchpad

The source for these demos and the Ranged Number class can be found here: Ranged Number ZIP

12
Mar
09

Fastest Way to Copy An Array: Concat() or Slice(0)

What is the fastest way to copy an array? Concat or Slice? There is only one way to find out. FIGHT!

OK, so we can dismiss any kind of for-loop – far too slow, so that leaves us with:
1) array.concat() – i.e. concatenate an array onto nothing and deliver that as a new array.
2) array.slice(0) – i.e. return a new array consisting of all of the elements of the old array – from 0 till the end (up to a max of 16777215)

I’ve set up an array with a cool 1million entries (ok, it is not big, and it is not clever so it certainly isn’t cool). I need to copy this. The following code executes each method once on every iteration. It keeps a running total and records the average time each takes. I’ve limited the code to 100 iterations.

package
{
import flash.display.Sprite;
import flash.events.Event;
import flash.events.MouseEvent;
import flash.text.TextField;
import flash.utils.*;
public class TestConcat extends Sprite
{
private var iteration_count:int=0
private var concat_total:int=0
private var slice_total:int=0
private var clone_total:int=0
private var tf:TextField = new TextField()
private var test_array:Array = [];

public function TestConcat():void
{
tf.x = tf.y = 100; tf.width = 600;
addChild(tf)

//Set up array to copy
for(var i:int = 0; i < 1000000; i++) test_array.push(i);
//Mouse click to rerun test
stage.addEventListener(MouseEvent.CLICK, go);
//First run
go()
}

private function go(e:Event = null):void
{
iteration_count=concat_total=slice_total=clone_total=0
addEventListener(Event.ENTER_FRAME, iterate)
}

//Loop through tests
private function iterate(e:Event=null):void
{
concat_total +=testConcat()
slice_total += testSlice()
clone_total += testByteArrayClone()
iteration_count++
tf.text = "Av. Concat time=" + (concat_total / iteration_count)
+ "ms Av. Slice time=" + (slice_total / iteration_count)
+ "ms Av. BA Clone time=" + (clone_total / iteration_count) + "ms";
if(iteration_count<99) removeEventListener(Event.ENTER_FRAME,iterate)
}

//test array slice
private function testSlice():int
{
var time_slice_start:Number = getTimer();
var slice_copy:Array = test_array.slice(0);
return getTimer()-time_slice_start
}

//test array concat
private function testConcat():int
{
var time_concat_start:Number = getTimer();
var concat_copy:Array = test_array.concat();
return getTimer()-time_concat_start
}

//test BA Clone method
private function testByteArrayClone():int
{
var time_concat_start:Number = getTimer();
var concat_copy:Array = clone(test_array);
return getTimer()-time_concat_start
}

//Clone method for Deep Objects(via Bruno)
private function clone(source:Object):*
{
var myBA:ByteArray = new ByteArray();
myBA.writeObject(source);
myBA.position = 0;
return(myBA.readObject());
}
}
}

On my laptop I’m clocking the concat at 14ms and the slice at over 29ms.

So a conclusive result. concat is twice the speed (with large arrays – the difference diminishes considerably with smaller arrays)

Give the code a few run throughs and see what you get. Let me know if your results are markedly different.

UPDATED:
I have updated the code and added a swf to try out here and the source code here

Fastest way to copy an array

Test the array copy for yourself


I’ve also added in a test for the Byte Array Clone method suggested by Bruno (see his comments below). This method seems a great one for copying ‘deep’ arrays – arrays of complex objects (arrays, objects or other types). In this context and test (copying shallow arrays) the instantiation, writing and reading adds too much overhead. I’ll need to test this in a useful context: with deep arrays.

Demo: Array Copy test
Source: Source.as




Categories

Reasons to be Creative 2012

FITC Amsterdam 2012

Flash on the Beach 2011

Flash on the Beach 2010

Swingpants at Flash on the Beach

Flash on the Beach 2009

Swingpants at FOTB2009
